Wire Connectors

Test Fixtures

Wire Connectors

IDEAL has a wire connector that’s right for every job. We created our first twist-on wire connector in 1929 and have sold billions since. Our complete line includes Twist-On Wire Connectors, Push-In Wire Connectors, Grounding Wire Connectors, DataCom Wire Connectors, among others. The IDEAL line of electrical wire connectors is built to provide safe, dependable solutions for every application. Whether it’s residential, commercial or industrial; we have the connector that’s right for every job. IDEAL Wire Connectors are built for performance and reliability.

TWISTER® PRO FAMILY
Wire Connectors

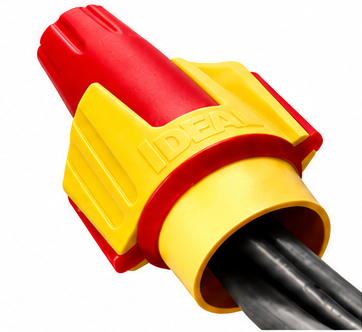

Twister Pro Connector

The Twister Pro® and ProFLEX™ family combines the most comfortable wire connector from IDEAL Electrical with the widest wire range of any multi-colored connectors in the industry. These connectors are designed with a live-action spring and high-leverage wings that provide excellent grip and torque. The ProFLEX™ line up is also engineered with a flexible skirt for added protection, providing performance professional electricians can trust.

Features:
Model Wire Gauge Range
343 Orange/Blue Min. 2 #22 Max. 4 #12 Sol.
345 Tan/Yellow Min 3 #22 Max. 3 #10
347 Red/Yellow Min. 2 #18 Max. 4 #10
344* Red/Tan Min. 2 #18 Max. 4 #10
348 Blue/Gray Min. 3 #12 Max. 1 #6 w/2 #8
Wire Combinations 2 #22 3 #22 2 #18 3 #12 4 #12 3 #10 4 #10 2 #6
Ordering Information
Description Model Color Image Wire Combination Range Quantity Part No.
Twister®
ProFLEX™
Mini
343 Orange/Blue 343 600V*
22 to 12 AWG
Min. 2 #22 – Max. 4 #12 Sol.
WIDEST RANGE in the industry of any orange/blue connector
Box of 100 30-343
Jar of 500 30-643J
Barrel of 35,000 30-843
Twister®
ProFLEX™
Plus
345 Tan/Yellow 345 600V*
22 to 8 AWG
Min. 3 #22 – Max. 3 #10
WIDEST RANGE in the industry of any tan/yellow connector
Box of 100 30-345
Jar of 500 30-1345J
Barrel of 25,000 30-845
Twister®
ProFLEX™
347 Red/Yellow 347 1000V
22 to 8 AWG
Min. 2 #18 – Max. 4 #10
WIDEST RANGE in the industry
Box of 50 30-1047
Bag of 250 30-347
Jar of 400 30-1347JR
Barrel of 15,000 30-747
Twister®
Pro
344* Red/Tan 344 600V*
22 to 8 AWG
Min. 2 #18 – Max. 4 #10
WIDEST RANGE in the industry
Box of 50 30-144
Jar of 250 30-244J
Jar of 500 30-644J
Barrel of 20,000 30-944
Twister®
ProFLEX™
Max
348 Blue/Gray 348 1000V
14 to 6 AWG
Min. 3 #12 – Max. 1 #6 w/2 #8
345 UL Listed Wire Combinations
Box of 25 30-348
Jar of 150 30-1348J
*1,000V maximum in fixtures and signs.
Form No. P-6033
©2024 IDEAL INDUSTRIES, INC.
604
Printed in U.S.A.
