IDEAL has a wire connector that’s right for every job. We created our first twist-on wire connector in 1929 and have sold billions since. Our complete line includes Twist-On Wire Connectors, Push-In Wire Connectors, Grounding Wire Connectors, DataCom Wire Connectors, among others. The IDEAL line of electrical wire connectors is built to provide safe, dependable solutions for every application. Whether it’s residential, commercial or industrial; we have the connector that’s right for every job. IDEAL Wire Connectors are built for performance and reliability.

IN-SURE^® LEVER

Wire Connectors

Secure Connections | Reusable - Solid and Stranded

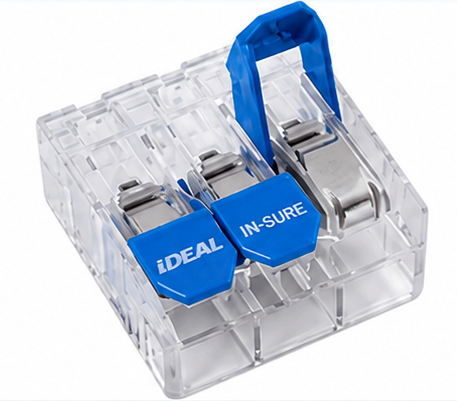

Lever wire connectors provide the perfect solution for joining solid and stranded wires. These versatile connectors have a compact design and take up minimal room in junction boxes and enclosures.

Secure, reliable and reusable
Releasable connector for solid & stranded wires
Modern alternative to traditional connectors
Clear housing allows verification of connection

Continuity check port and strip length guide
Compact design for tight spaces
Models L32, L33 and L35 listed for use with Cu/Cu and Cu/CC combinations

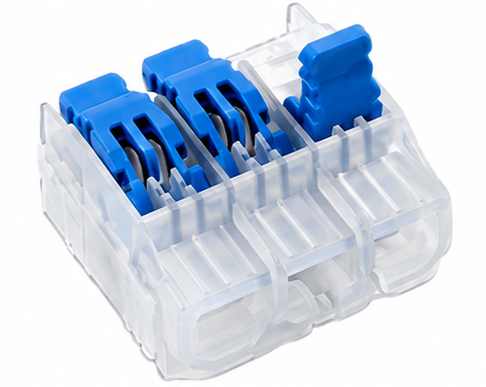

Models L22, L23 and L25 - Solid wires can be inserted without opening lever

12 AWG Lever Wire Connectors

Ordering Information

Model	# of Ports	Amp Rating	Wire Amp Combination	Qty.	Part No.
L22	2	20A	600V* Solid Copper: 24 - 12 AWG (0.25-4mm²) Stranded Copper: 24 - 12 AWG	Box of 150	30-10L22
				Jar of 500	30-50L22J
				Box of 4,000	30-10L22
L23	3			Box of 100	30-10L23
				Jar of 350	30-35L23J
				Box of 2,500	30-10L23

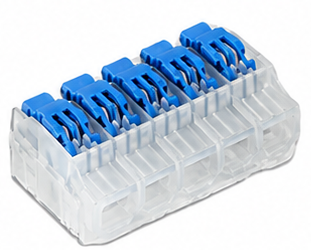

L25	5			Box of 75	30-10L25
				Jar of 200	30-20L25J
				Box of 1,500	30-16L25

*1,000V in signs and fixtures. Temperature rating 105°C max. (221°F).
COPPER-TO-COPPER ONLY. Do not use on aluminum.

10 AWG Lever Wire Connectors

Ordering Information

Model	# of Ports	Amp Rating	Wire Amp Combination	Qty.	Part No.
L32	2	30A	600V* Solid Copper: 22-10 AWG (0.5-6mm²) Solid-Copper Clad Aluminum: 12-10 AWG Stranded Copper: 22-10 AWG	Box of 100	30-10L32
				Jar of 350	30-35L32J
				Box of 1,000	30-16L32
L33	3			Box of 75	30-10L33
				Jar of 225	30-25L33J
				Box of 1,000	30-16L33

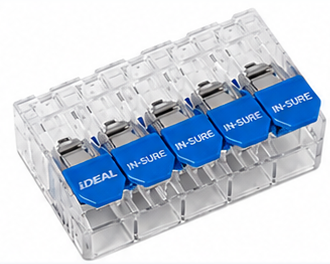

L35	5			Box of 50	30-10L35
				Jar of 125	30-15L35J
				Box of 500	30-16L35

*1,000V in signs and fixtures. Temperature rating 105°C max. (221°F). Listed for use with Cu-Cu and Cu-CC. DO NOT use with aluminum wire.

Confidence

Clear housing for visual inspection of work

Secure Connection

Optimized spring design for easy open and strong bite

Ease of Use

Better grip, single lever operation for less stress on hands

Reusable

Solid and stranded wire – tackle wide range of jobs

▼ IDEAL INDUSTRIES, INC.

Wire Connector

E1210

UK
CA

RoHS

IDEAL Equivalent	WAGO Part Number	WAGO Description	Number of Ports	Current Rating	Wire Gauge Range
30-16L22	221-412	221 Series 12AWG 2-Port Connector	2	20A	24-12 AWG
30-16L23	221-413	221 Series 12AWG 3-Port Connector	3	20A	24-12 AWG
30-16L25	221-415	221 Series 12AWG 5-Port Connector	5	20A	24-12 AWG
30-16L32	221-612	221 Series 10AWG 2-Port Connector	2	30A	20-10 AWG
30-16L33	221-613	221 Series 10AWG 3-Port Connector	3	30A	20-10 AWG
30-16L35	221-615	221 Series 10AWG 5-Port Connector	5	30A	20-10 AWG
